Flatbed Screen printing machines, MLCC / LTCC related equipment (laminators, cutting machines, terminator, etc.), transport equipment, automatic production lines, drying furnaces. Microtec is best suited for Printed electronics and Solar cell print applications.

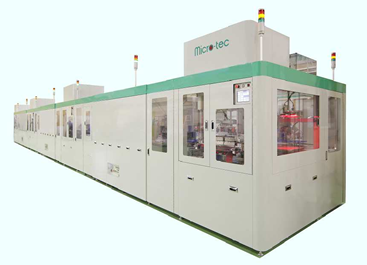

MPV- 8000 Display Solar Cell Print Line
Description
Substrate Material/Type: Silicon Wafer
Substrate size: 166 mm (M6)
Substrate thickness: Min. 100um with mono crystalline wafers and 120um with poly crystelline wafers
Quality of Wafers: Microcracks-free tested
Gross throughput: Max. 8000 cells/hour
MT-320T/ MT-650TV/ MT-1100TVC
Description
This series is has small to large, versatile screen printing machines. By adopting a wedge method (for MT-650/MT1100 series) for driving the table, smooth operation is possible even with a large size.
Specification
| Model | MT-320T | MT-650TV | MT-1100TVC |
|---|---|---|---|
| Screen size | 320mm/380mm | 450mm/550mm/550x650mm | 950mm~1100mm |
| Print Area | Max. 150x150mm/ 180mmx180mm | Max. 250x250mm | Max. 550x550mm |
| Alignment method | Manual | Camera+Manual | Camera+Automatic |
| Squeegee stroke | Max. 280mm | Max. 370mm | Max. 700mm |
